KP-NH12 Av Test Equipment , Covering Scratch Tester PLC Control

Name: KPNH12 Av Test Equipment Covering Scratch Tester PLC Control
Brand: kingpo
Price: 1 USD

Brand Name : kingpo

Model Number : KP-NH12

Certification : iso9001 ce

Place of Origin : china

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Packaging Details : safety carton pack or plywood box

Standard : IEC60065 Figure 11

torque : not exceed 0,25 Nm

Contact Now

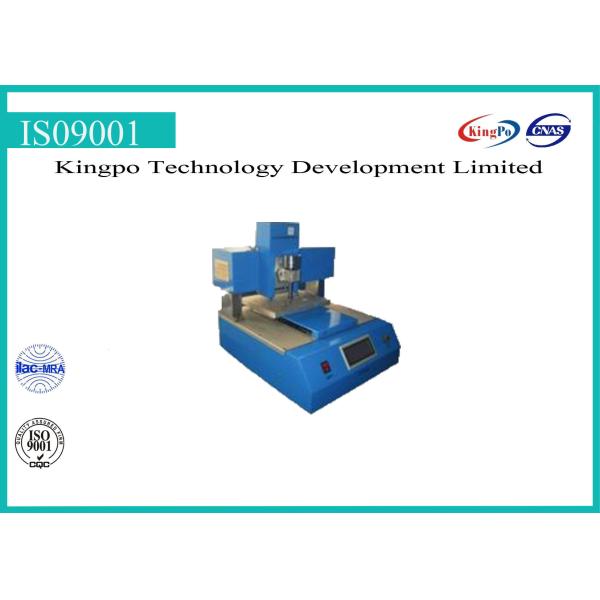

Covering Scratch Tester

Product details:

The device is used to check abrasion strength of printed circuit boards scratches are made across five pairs of conducting parts and the intervening separations at points where the separations will be subject to the maximum potential gradient during the tests.

The scratches are made by means of a hardened steel pin, the end of which has the form of a cone having a tip angle of 40°, its tip being rounded and polished, with a radius of 0.25 mm ± 0.02 mm.

Scratches are made by drawing the pin along the surface in a plane perpendicular to the conductor edges at a speed of 20 mm/s ± 5 mm/s. The pin is so loaded that the force exerted along its axis is 10 N ± 0.5 N. The scratches shall be at least 5 mm apart and at least 5 mm from the edge of the specimen.

Technical Parameters:

Power Supply	220V 50Hz or 115V 60Hz
Tip Angle of Steel Pin	40°
Radius of Steel Pin	0.25 mm ± 0.02 mm
Scratch Speed	20 mm/s ± 5 mm/s
Force	10 N ± 0.5 N
Scratch Angle	80-85°
Scratch Distance	Adjustable
Control System	PLC
Worktable	eddy
Conforms to Standard	IEC60335-1 clause 21.1, IEC60950 clause 2.10.8.4
